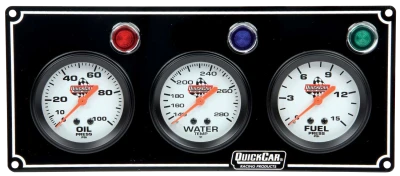

Legend Gauge Panel Assembly, Fuel Pressure / Oil Pressure / Water Temperature, 2-5/8 in Diameter, Silver Face, Warning Light, Kit

Product Description

Legend Gauge Panel - Black Plate, OP/WT/FP15

• QuickCar Legend Series Plug-and-Play Gauge Panel Assembly.
• Mechanical gauges mounted in a black designed panel.
• Panel comes complete with all sending units, warning lights, and wiring for easy installation.
• Water Temp. gauge comes with a 1/2”-NPT adapter to mount in the intake of almost any high-performance engine.
• Oil and Fuel Pressure have a standard 1/8”-NPT fitting for plumbing lines (sold separately).
• Warning lights activate to notify driver of issues.
• Panel includes: Oil pressure, water temperature, and 15PSI fuel pressure.
• Warning lights activate when Oil Pressure drops below 20 PSI, Water Temp. goes above 235°F, and Fuel Pressure goes below 4 PSI.
• Panel Dimensions: 10-1/2" wide x 4-1/2" tall.

Additional Resources

• Instructions Legend Gauge Panels.pdf
