Product Description

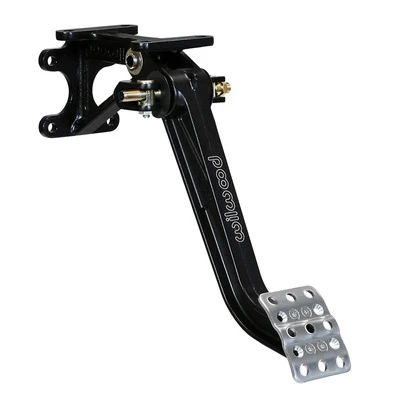

- This swinging mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall
- It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal arm
- The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary
- The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness
- A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel
- The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments
- This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
