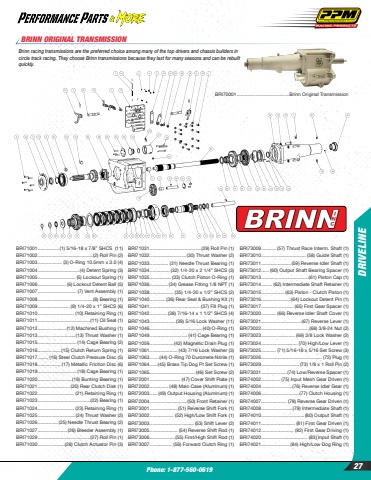

Phone: 1-877-560-0619DRIVELINE27BRI70001 .......................................Brinn Original TransmissionBrinn racing transmissions are the preferred choice among many of the top drivers and chassis builders in circle track racing. They choose Brinn transmissions because they last for many seasons and can be rebuilt quickly.BRINN ORIGINAL TRANSMISSIONBRI71001................(1) 5/16-18 x 7/8%u201d SHCS (11)BRI71002.........................................(2) Roll Pin (2)BRI71003.................. (3) O-Ring 10.5mm x 3.0 (4)BRI71004...............................(4) Detent Spring (3)BRI71005............................ (5) Lockout Spring (1)BRI71006..................... (6) Lockout Detent Ball (5)BRI71007............................. (7) Vent Assembly (1)BRI71008.........................................(8) Bearing (1)BRI71009........................ (9) 1/4-20 x 1%u201d SHCS (6)BRI71010........................... (10) Retaining Ring (1) BRI71011.......................................(11) Oil Seal (1)BRI71012.....................(12) Machined Bushing (1)BRI71013............................(13) Thrust Washer (1)BRI71015.............................(14) Cage Bearing (2)BRI71016................. (15) Clutch Return Spring (1)BRI71017........ (16) Steel Clutch Pressure Disc (5)BRI71018................. (17) Metallic Friction Disc (6)BRI71019.............................(18) Cage Bearing (1)BRI71020......................... (19) Bunting Bearing (1)BRI71021........................(20) Rear Clutch Disk (1)BRI71022........................... (21) Retaining Ring (1)BRI71023.......................................(22) Bearing (1)BRI71024........................... (23) Retaining Ring (1)BRI71025............................(24) Thrust Washer (2)BRI71026...............(25) Needle Thrust Bearing (2)BRI71027......................(26) Bleeder Assembly (1)BRI71029.......................................(27) Roll Pin (1)BRI71030....................(28) Clutch Actuator Pin (3)BRI71031...................................... (29) Roll Pin (1)BRI71032........................... (30) Thrust Washer (2)BRI71033.............. (31) Needle Thrust Bearing (1)BRI71034............... (32) 1/4-20 x 2 1/4%u201d SHCS (3)BRI71035................ (33) Clutch Piston O-Ring (1)BRI71036..............(34) Grease Fitting 1/8 NPT (1)BRI71038.................. (35) 1/4-20 x 1/2%u201d SHCS (2)BRI71040............ (36) Rear Seal & Bushing Kit (1)BRI71041......................................(37) Fill Plug (1)BRI71042............. (38) 7/16-14 x 1 1/2%u201d SHCS (4)BRI71043................... (39) 5/16 Lock Washer (11)BRI71046.......................................(40) O-Ring (1)BRI71049............................ (41) Cage Bearing (1)BRI71059..................(42) Magnetic Drain Plug (1)BRI71061..................... (43) 7/16 Lock Washer (3)BRI71063.......(44) O-Ring 70 Duromete Nitrile (1)BRI71064......(45) Brass Tip Dog Pt Set Screw (1)BRI71065..................................(46) Set Screw (2)BRI72001....................... (47) Cover Shift Plate (1)BRI72002.............. (48) Main Case (Aluminum) (1)BRI72003......(49) Output Housing (Aluminum) (1)BRI72004............................(50) Front Retainer (1)BRI73001.....................(51) Reverse Shift Fork (1)BRI73002.................. (52) High/Low Shift Fork (1)BRI73003................................. (53) Shift Lever (2)BRI73005..................... (54) Reverse Shift Rod (1)BRI73006...................(55) First/High Shift Rod (1)BRI73007................. (56) Forward Clutch Ring (1)BRI73009........... (57) Thrust Race Interm. Shaft (1)BRI73010................................. (58) Guide Shaft (1)BRI73011......................(59) Reverse Idler Shaft (1)BRI73012......(60) Output Shaft Bearing Spacer (1)BRI73013...................................(61) Piston Cap (1)BRI73014........ (62) Intermediate Shaft Retainer (1)BRI73015................. (63) Piston - Clutch Piston (1)BRI73016......................(64) Lockout Detent Pin (1)BRI73017........................ (65) First Gear Spacer (1)BRI73020........... (66) Reverse Idler Shaft Cover (1)BRI73021..............................(67) Reverse Lever (1)BRI73022................................... (68) 3/8-24 Nut (2)BRI73023......................... (69) 3/8 Lock Washer (2)BRI73024........................... (70) High/Low Lever (1)BRI73025........... (71) 5/16-18 x 5/16 Set Screw (3)BRI73026............................................. (72) Plug (1)BRI73029............................ (73) 1/8 x 1 Roll Pin (2)BRI73031...................(74) Low/Reverse Spacer (1)BRI74002.............. (75) Input Mesh Gear Driven (1)BRI74004.......................(76) Reverse Idler Gear (1)BRI74006............................(77) Clutch Housing (1)BRI74007................... (78) Reverse Gear Driven (1)BRI74008.......................(79) Intermediate Shaft (1)BRI74010................................(80) Output Shaft (1)BRI74011......................... (81) First Gear Driven (1)BRI74012........................ (82) First Gear Driving (1)BRI74020...................................(83) Input Shaft (1)BRI74021.....................(84) High/Low Dog Ring (1)
