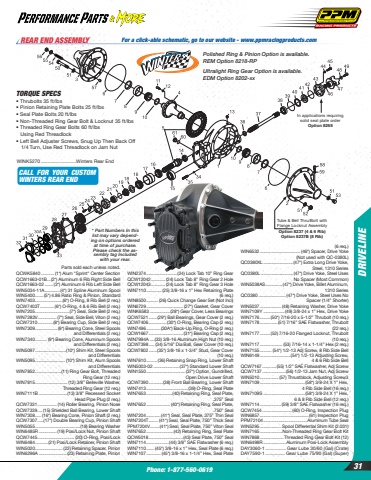

Phone: 1-877-560-0619DRIVELINE31Parts sold each unless noted.QCWK5840 ........... (1*) Alum \QCW1663-01B ...(2*) Aluminum 6 Rib Right Side BellQCW1663-02 ....... (3*) Aluminum 6 Rib Left Side BellWIN5034-11A.............(4*) 31 Spline Aluminum SpoolWIN5400 .......(5*) 4.86 Ratio Ring & Pinion, StandardWIN7403.......................(6*) O-Ring, 8 Rib Bell (2 req.)QCW7403T............(6*) O-Ring, 4 & 6 Rib Bell (2 req.)WIN7205.............................(7*) Seal, Side Bell (2 req.)WIN7283V................(7*) Seal, Side Bell, Viton (2 req.)QCW7310.............(8*) Bearing Cup, Side Bell (2 req.)WIN7309...................(9*) Bearing Cone, Steel Spools and Differentials (2 req.)WIN7340 .......... (9*) Bearing Cone, Aluminum Spools and Differentials (2 req.)WIN5097..........................(10*) Shim Kit, Steel Spools and DifferentialsWIN5095......................... (10*) Shim Kit, Alum Spools and DifferentialsWIN7852......................(11) Ring Gear Bolt, Threaded Ring Gear (12 req.)WIN7815........................... (12) 3/8%u201d Belleville Washer, Threaded Ring Gear (12 req.)WIN7111B........................(13) 3/8%u201d Recessed Socket Head Pipe Plug (2 req.)QCW7331................ (14) Roller Bearing, Pinion NoseQCW7339 ....(15) Shielded Ball Bearing, Lower ShaftWIN7308 ..... (16*) Bearing Cone, Pinion Shaft (2 req.)QCW7307 .....(17*) Double Bearing Cup, Pinion ShaftWIN5055......................................(18) Bearing WasherWIN6485R...............(19) Posi/Lock Nut, Pinion ShaftQCW7445............................... (20) O-Ring, Posi/LockWIN6484 ...........(21) Posi/Lock Retainer, Pinion ShaftWIN5020....................... (22) Retaining Spacer, PinionWIN6296A ........................(23) Retaining Plate, PinionWIN2374..........................(24) Lock Tab 10%u201d Ring GearQCW12042............(24) Lock Tab 8%u201d Ring Gear 2 HoleQCW12043............(24) Lock Tab 8%u201d Ring Gear 3 HoleWIN7110.............(25) 3/8-16 x 1%u201d Hex Retaining Plate (6 req.)WIN8500 .......... (26) Quick Change Gear Set (Not Incl)WIN6729............................... (27*) Gasket, Gear CoverWINK6583 .................(28*) Gear Cover, Less BearingsQCW7521 .......(29*) Ball Bearings, Gear Cover (2 req.)QCW7406...............(30*) O-Ring, Bearing Cap (2 req.)WIN7496............(30A*) Back-Up Ring, O-Ring (2 req.)QCW1667.............................(31*) Bearing Cap (2 req.)WIN7994A ....(33) 3/8-16 Aluminum High Nut (10 req.)QCW7398 ..... (34) 5/16%u201d Dia Ball, Gear Cover (10 req.)QCW7802 .......(35*) 3/8-16 x 1-3/4%u201d Stud, Gear Cover (10 req.)WIN7610 ......... (36) Retaining Snap Ring, Lower ShaftWIN5003-02 ......................(37*) Standard Lower ShaftWIN1550.................................(37*) Option, Gundrilled, Open Drive Lower ShaftQCW7390............(38) Front Ball Bearing, Lower ShaftWIN7413...................................(39) O-Ring, Seal PlateWIN7653......................(40) Retaining Ring, Seal Plate, .375%u201d SealWIN7652.................... (40*) Retaining Ring, Seal Plate, .750%u201d SealWIN7204............(41*) Seal, Seal Plate, 375%u201d Thin SealWIN7204T........ (41*) Seal, Seal Plate, 750%u201d Thick SealPPM7204V........(41*) Seal, Seal Plate, 750%u201d Viton SealWIN7652.......................(42) Retaining Ring, Seal PlateQCW5018.............................(43) Seal Plate, 750%u201d SealWIN7114...................(44) 3/8%u201d SAE Flatwasher (6 req.)WIN7110 .......(45*) 3/8-16 x 1%u201d Hex, Seal Plate (6 req.)WIN7107 ............ (45*) 3/8-16 x 1-1/4%u201d Hex, Seal Plate (6 req.)WIN6532.................................. (46*) Spacer, Drive Yoke (Not used with QC-0380L)QC0380XL.........................(47*) Extra Long Drive Yoke, Steel, 1310 SeriesQC0380L ...........................(47*) Drive Yoke, Steel Uses No Spacer (Most Common)WIN5038AS..............(47*) Drive Yoke, Billet Aluminum, 1310 SeriesQC0380 .......................(47*) Drive Yoke, Steel Uses No Spacer (1/4%u201d Shorter)WIN5037.................. (48) Retaining Washer, Drive YokeWIN7109Y ..................(49) 3/8-24 x 1%u201d Hex, Drive YokeWIN7176 .........(50*) 7/16-20 x 5-1/2%u201d Thrubolt (10 req.)WIN7178...............(51) 7/16%u201d SAE Flatwasher, Thrubolt (22 req.)WIN7177 .........(52) 7/16-20 Flanged Locknut, Thrubolt (10 req.)WIN7117................... (53) 7/16-14 x 1-1/4%u201d Hex (2 req.)WIN7155 .......... (54*) 1/2-13 Adj Screw, 8 Rib Side BellWIN6149..........................(54*) 1/2-13 Adjusting Screw, 4 & 6 Rib Side BellQCW7167............(55) 1/2%u201d SAE Flatwasher, Adj ScrewQCW7137....................(56) 1/2-13 Jam Nut, Adj ScrewWIN5010................(57) Thrustblock, Adjusting Screw3WIN7109......................................(58*) 3/8-24 X 1%u201d Hex, 4 Rib Side Bell (16 req.)WIN7109S ...................................(58*) 3/8-24 X 1%u201d Hex, 6 & 8 Rib Side Bell (12 req.)WIN7114..................(59) 3/8%u201d SAE Flatwasher (16 req.)QCW7454.........................(60) O-Ring, Inspection PlugWIN6857.........................................(61) Inspection PlugPPM72104.....................................Aluminum Tube SealWIN5295.................. Spool Differential Shim Kit (2.031)WIN7165...................Non-Threaded Ring Gear Bolt KitWIN7868....................Threaded Ring Gear Bolt Kit (12)WIN6498R...................Aluminum Posi-Lock AssemblyDAY3060-1 ................Gear Lube 30/60 (Gal) (Crate)DAY7590-1 ............... Gear Lube 75/90 (Gal) (Super)WINK5270 ..........................Winters Rear EndPolished Ring & Pinion Option is available.REM Option 8218-RPUltralight Ring Gear Option is available.EDM Option 8202-xxTORQUE SPECS%u2022 Thrubolts 35 ft/lbs%u2022 Pinion Retaining Plate Bolts 25 ft/lbs%u2022 Seal Plate Bolts 20 ft/lbs%u2022 Non-Threaded Ring Gear Bolt & Locknut 35 ft/lbs%u2022 Threaded Ring Gear Bolts 60 ft/lbs Using Red Threadlock%u2022 Left Bell Adjuster Screws, Snug Up Then Back Off 1/4 Turn, Use Red Threadlock on Jam NutIn applications requiring solid seal plate order Option 8268Tube & Bell Thru/Bolt with Flange Locknut AssemblyOption 8237 (4 & 6 Rib)Option 8237B (8 Rib)* Part Numbers In this list may vary depending on options ordered at time of purchase. Please check the assembly tag Included with your rear.CALL FOR YOUR CUSTOM WINTERS REAR ENDREAR END ASSEMBLY For a click-able schematic, go to our website - www.ppmracingproducts.com
