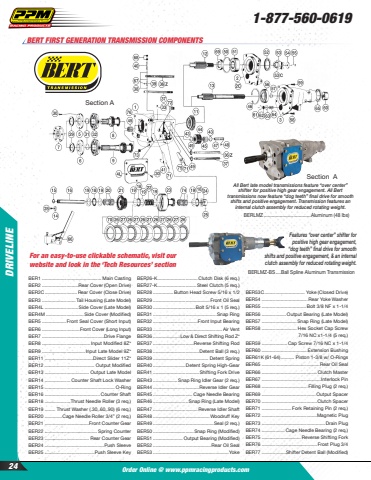

Order Online @ www.ppmracingproducts.comDRIVELINE1-877-560-061924BER26-K .............................. Clutch Disk (6 req.)BER27-K .............................Steel Clutch (5 req.)BER28 ...............Button Head Screw 5/16 x 1/2BER29 ..........................................Front Oil SealBER30 ...............................Bolt 5/16 x 1 (5 req.)BER31 ...............................................Snap RingBER32 .................................Front Input BearingBER33 ................................................... Air VentBER36 ....................Low & Direct Shifting Rod Z*BER37 ..............................Reverse Shifting RodBER38 ..................................Detent Ball (3 req.)BER39 ......................................... Detent SpringBER40 ........................Detent Spring High-GearBER41 ..................................Shifting Fork DriveBER43 ..................Snap Ring Idler Gear (2 req.)BER44 ..................................Reverse Idler GearBER45 ............................. Cage Needle BearingBER46 ..........................Snap Ring (Late Model)BER47 .................................Reverse Idler ShaftBER48 ..........................................Woodruff KeyBER49 .............................................Seal (2 req.)BER50 ..............................Snap Ring (Modified)BER51 ...................... Output Bearing (Modified)BER52 ...........................................Rear Oil SealBER53 ........................................................YokeBER53C .............................. Yoke (Closed Drive)BER54 .................................. Rear Yoke WasherBER55 .................................Bolt 3/8 NF x 1-1/4BER56 .................. Output Bearing (Late Model)BER57 ..........................Snap Ring (Late Model)BER58 .......................... Hex Socket Cap Screw 7/16 NC x1-1/4 (5 req.)BER59 ...................Cap Screw 7/16 NC x 1-1/4BER60 ..................................Extension BushingBER61K (61-64) .......... Piston 1-3/8 w/ O-RingsBER65 ...........................................Rear Oil SealBER66 .........................................Clutch MasterBER67 ............................................Interlock PinBER68 ..................................Filling Plug (2 req.)BER69 ........................................Output SpacerBER70 .........................................Clutch SpacerBER71 ...................... Fork Retaining Pin (2 req.)BER72 .........................................Magnetic PlugBER73 ...............................................Drain PlugBER74 ................. Cage Needle Bearing (2 req.)BER75 ............................. Reverse Shifting ForkBER76 .........................................Frost Plug 3/4BER77 ..................Shifter Detent Ball (Modified)BER1 ............................................ Main CastingBER2 ...........................Rear Cover (Open Drive)BER2C ........................ Rear Cover (Close Drive)BER3 ......................... Tail Housing (Late Model)BER4L .........................Side Cover (Late Model)BER4M ............................Side Cover (Modified)BER5 ..................Front Seal Cover (Short Input)BER6 ............................Front Cover (Long Input)BER7 ..............................................Drive FlangeBER8 ....................................Input Modified 8Z*BER9 ................................Input Late Model 9Z*BER11 ....................................Direct Slider 11Z*BER12 ..................................... Output ModifiedBER13 ................................. Output Late ModelBER14 ................... Counter Shaft Lock WasherBER15 .................................................... O-RingBER16 ......................................... Counter ShaftBER18 ...................Thrust Needle Roller (3 req.)BER19 ........ Thrust Washer (.30,.60,.90) (6 req.)BER20 .............Cage Needle Roller 3/4%u201d (2 req.)BER21 .................................Front Counter GearBER22 ....................................... Spring CounterBER23 ................................. Rear Counter GearBER24 ............................................Push SleeveBER25 .....................................Push Sleeve KeyBERT FIRST GENERATION TRANSMISSION COMPONENTSFor an easy-to-use clickable schematic, visit our website and look in the %u2018Tech Resources%u2019 sectionBERLMZ-BS ....Ball Spline Aluminum TransmissionFeatures %u201cover center%u201d shifter for positive high gear engagement, %u201cdog teeth%u201d final drive for smooth shifts and positive engagement, & an internal clutch assembly for reduced rotating weight.Section ABERLMZ ...................................Aluminum (48 lbs)All Bert late model transmissions feature %u201cover center%u201d shifter for positive high gear engagement. All Bert transmissions now feature %u201cdog teeth%u201d final drive for smooth shifts and positive engagement. Transmission features an internal clutch assembly for reduced rotating weight. Section A
