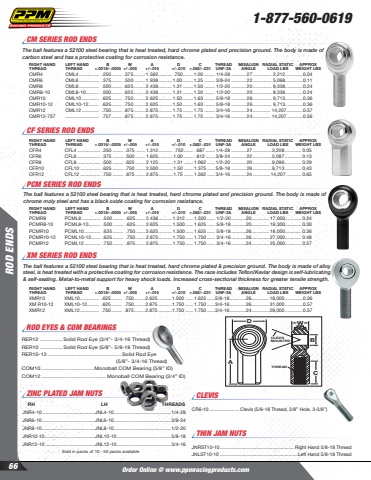

Order Online @ www.ppmracingproducts.comROD ENDS1-877-560-061966D WB CLEVISMOUNTEDTHREADCAROD EYES & COM BEARINGSRER12 ............... Solid Rod Eye (3/4%u201d- 3/4-16 Thread)RER10 ............... Solid Rod Eye (5/8%u201d- 5/8-18 Thread)RER10-12 .................................................Solid Rod Eye (5/8%u201d- 3/4-16 Thread)COM10 ...................................Monoball COM Bearing (5/8%u201d ID)COM12 ........................................... Monoball COM Bearing (3/4%u201d ID)CLEVISCR6-10 ...................... Clevis (5/8-18 Thread, 3/8%u201d Hole, 3-3/8%u201d) CF SERIES ROD ENDSRIGHT HAND LEFT HAND B W A D C THREAD MISALIGN RADIAL STATIC APPROXTHREAD THREAD +.0015/-.0005 +/-.005 +/-.015 +/-.010 +.062/-.031 UNF-3A ANGLE LOAD LBS WEIGHT LBSCFR4 CFL4 ................. .250 ........ .375 ....... 1.312.......... .750....... .687 .......1/4-28 ...........27 ..............3,208 ............ 0.05CFR6 CFL6 ................. .375 ........ .500 ....... 1.625...........1.00 ....... .812 .......3/8-24 ...........22 ..............5,087 ............ 0.13CFR8 CFL8 ................. .500 ........ .625 ....... 2.125...........1.31 .......1.062 ......1/2-20 ...........20 ..............9,096 ............ 0.29CFR10 CFL10 ............... .625 ........ .750 ....... 2.500...........1.50 .......1.375 ......5/8-18 ...........26 ..............9,713 ............ 0.43CFR12 CFL12 ............... .750 ........ .875 ....... 2.875...........1.75 .......1.562 ......3/4-16 ...........24 .............14,207 ........... 0.65PCM SERIES ROD ENDSThe ball features a 52100 steel bearing that is heat treated, hard chrome plated and precision ground. The body is made of chrome moly steel and has a black oxide coating for corrosion resistance.RIGHT HAND LEFT HAND B W A D C THREAD MISALIGN RADIAL STATIC APPROXTHREAD THREAD +.0015/-.0005 +/-.005 +/-.015 +/-.010 +.062/-.031 UNF-3A ANGLE LOAD LBS WEIGHT LBSPCMR8 PCML8.............. .500........ .625....... 2.438.......... 1.312......1.500 ...... 1/2-20...........20............. 17,000............ 0.24PCMR8-10 PCML8-10......... .500........ .625....... 2.625.......... 1.500......1.625 ...... 5/8-18...........20............. 19,300............ 0.30PCMR10 PCML10............ .625........ .750....... 2.625.......... 1.500......1.625 ...... 5/8-18...........26............. 18,000............ 0.36PCMR10-12 PCML10-12....... .625........ .750....... 2.875.......... 1.750......1.750 ...... 3/4-16...........26............. 27,000............ 0.48PCMR12 PCML12............ .750........ .875....... 2.875.......... 1.750......1.750 ...... 3/4-16...........24............. 25,000............ 0.57 XM SERIES ROD ENDSThe ball features a 52100 steel bearing that is heat treated, hard chrome plated & precision ground. The body is made of alloy steel, is heat treated with a protective coating for corrosion resistance. The race includes Teflon/Kevlar design is self-lubricating & self-sealing. Metal-to-metal support for heavy shock loads. Increased cross-sectional thickness for greater tensile strength.RIGHT HAND LEFT HAND B W A D C THREAD MISALIGN RADIAL STATIC APPROXTHREAD THREAD +.0015/-.0005 +/-.005 +/-.015 +/-.010 +.062/-.031 UNF-3A ANGLE LOAD LBS WEIGHT LBSXMR10 XML10.............. .625........ .750........2.625 ..........1.500 ......1.625 ......5/8-18............26.............18,000 .............0.36XM R10-12 XML10-12......... .625........ .750........2.875 ..........1.750 ......1.750 ......3/4-16............26.............31,000 .............0.57XMR12 XML12.............. .750........ .875........2.875 ..........1.750 ......1.750 ......3/4-16............24.............28,000 .............0.57ZINC PLATED JAM NUTS RH LH THREADSJNR4-10 .......................................JNL4-10 .......................................... 1/4-28JNR6-10 .......................................JNL6-10 .......................................... 3/8-24JNR8-10 .......................................JNL8-10 .......................................... 1/2-20JNR10-10 .....................................JNL10-10 ........................................ 5/8-18JNR12-10 .....................................JNL12-10 ........................................ 3/4-16Sold in packs of 10 - 50 packs availableCM SERIES ROD ENDSRIGHT HAND LEFT HAND B W A D C THREAD MISALIGN RADIAL STATIC APPROXTHREAD THREAD +.0015/-.0005 +/-.005 +/-.015 +/-.010 +.062/-.031 UNF-3A ANGLE LOAD LBS WEIGHT LBSCMR4 CML4............... .250........ .375 ........ 1.562.......... .750........1.00 ........ 1/4-28 ........... 27.............. 2,212.............0.04CMR6 CML6............... .375........ .500 ........ 1.938.......... 1.00........1.25 ........ 3/8-24 ........... 22.............. 5,068.............0.11CMR8 CML8............... .500........ .625 ........ 2.438.......... 1.31........1.50 ........ 1/2-20 ........... 20.............. 8,338.............0.24CMR8-10 CML8-10.......... .500........ .625 ........ 2.438.......... 1.31........1.50 ........ 1/2-20 ........... 20.............. 8,338.............0.24CMR10 CML10............. .625........ .750 ........ 2.625.......... 1.50........1.63 ........ 5/8-18 ........... 26.............. 9,713.............0.36CMR10-12 CML10-12........ .625........ .750 ........ 2.625.......... 1.50........1.63 ........ 5/8-18 ........... 26.............. 9,713.............0.36CMR12 CML12............. .750........ .875 ........ 2.875.......... 1.75........1.75 ........ 3/4-16 ........... 24............. 14,207............0.57CMR12-757 ......................... .757........ .875 ........ 2.875.......... 1.75........1.75 ........ 3/4-16 ........... 24............. 14,207............0.56The ball features a 52100 steel bearing that is heat treated, hard chrome plated and precision ground. The body is made of carbon steel and has a protective coating for corrosion resistance.JNRST10-10....................................................... Right Hand 5/8-18 ThreadJNLST10-10 ..........................................................Left Hand 5/8-18 ThreadTHIN JAM NUTS
