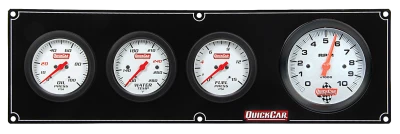

Gauge Panel Assembly, Extreme, Fuel Pressure / Oil Pressure / Tachometer / Water Temperature, Tachometer Recall, 3-3/8 in / 2-5/8 in Diameter, White Face, Kit.

Product Description

Extreme Gauge Panel w/ 611-6002 - Black Plate, OP/WT/FP15/Tach

• QuickCar Extreme Series Gauge Panel Assembly.
• Mechanical gauges mounted in a black panel.
• Panel comes complete with all sending units, warning lights, and wiring for easy installation.
• Panel includes: Oil pressure, water temperature, fuel pressure, and 10,000 RPM 3-3/8" tachometer.
• Internal warning lights activate when Oil Pressure drops below 20 PSI, Water Temp. goes above 235°F, and Fuel Pressure drops below 4 P
• Panel Dimensions: 15-1/8" wide x 4-1/2" tall.

Additional Resources

• Instructions Extreme Gauge Panels.pdf
